Constant Voltage Dimmer
DMX2PWM Dimmers enable control of low-voltage LEDs using a DMX512 controller. Using PWM (Pulse-Width Modulation) technique, they are designed for use with constant voltage LEDs with a maximum output current of 2 A per channel, or 2.5 A for the three-channel version. DMX512 signal is amplified through DMX2PWM Dimmers for convenient daisy-chaining. DMX2PWM Dimmers’ flexibility makes installations easy with auto and manual DMX512 addressing modes, and in the case of the nine-channel version, the option of using an RJ45 connector or loose wire for DMX512 connection. The reverse supply protection and self-resetting over-current protection ensure safety against possible damage due to incorrect wiring. The nine-channel version is conveniently mountable inside equipment racks using standard 35 mm wide DIN rail.
IC 3 Channel: AA623900135
EAN 3 Channel: 4006584812233
IC 9 Channel: AA623910135
EAN 9 Channel: 4006584812257
Certifications & Approbations
The tool to realize simple to highly sophisticated architectural lighting control projects – one software fits all!
A two-channel DMX and RDM interface which can be used with e:cue’s lighting control software SYMPHOLIGHT.

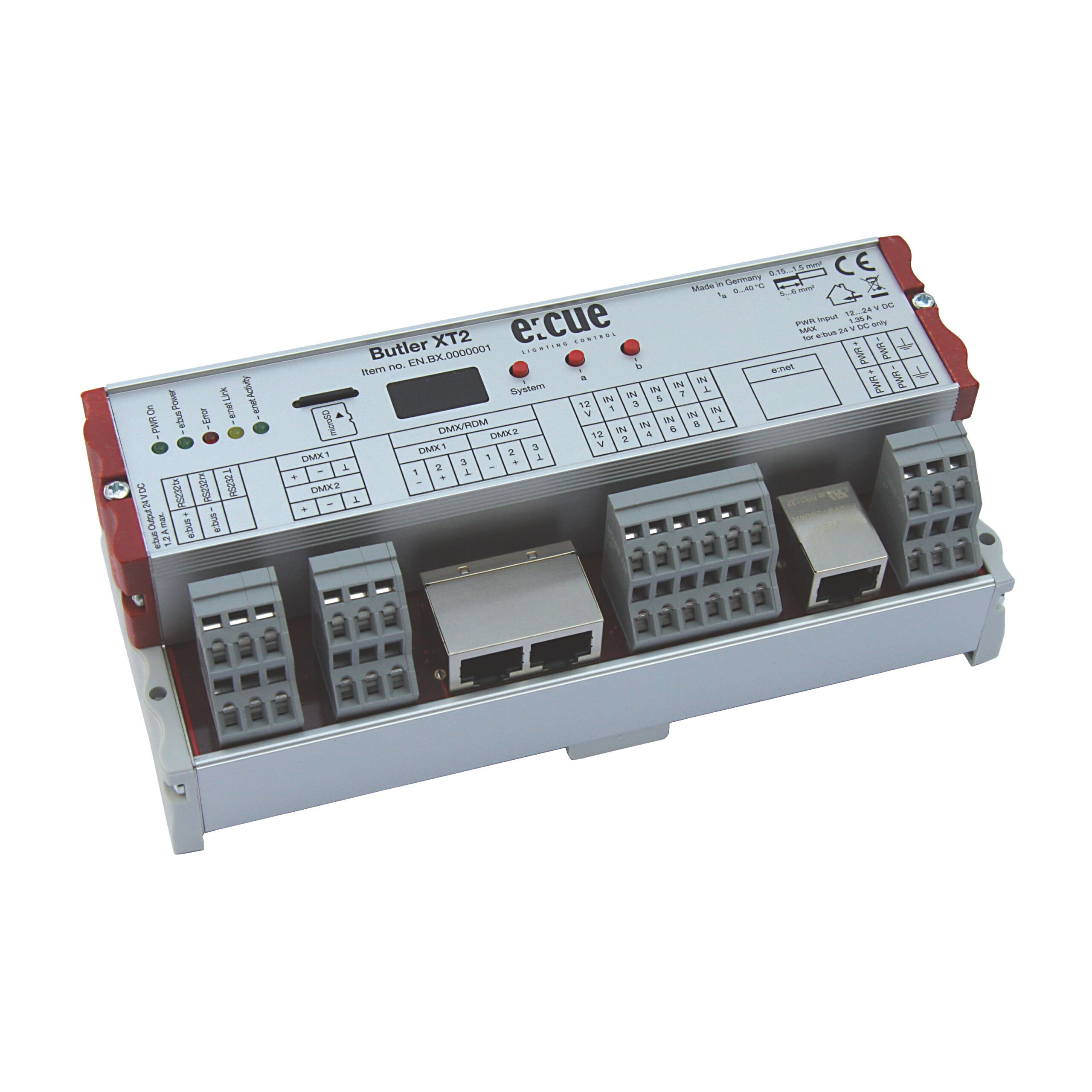

Extends the successful Butler series with the inclusion of a DMX512 system, which is especially suitable for less complex applications in standalone mode.
A DMX engine which can be used either in standalone mode to replay and loop previously uploaded lighting shows, or as a DMX output device.
| DMX2PWM 3 | DMX2PWM 9 | |
| Dimensions (W x H x D) | 94 x 71.5 x 24 mm / 3.66 x 2.81 x 0.94 in | 107 x 76 x 59 mm / 4.21 x 2.99 x 2.32 in |
| Weight | 0.08 kg / 0.18 lb | 0.228 kg / 0.5 lb |
| Power | 12 … 48 V DC (screw terminals) | 12 … 48 V DC (screw terminals) |
| Quiescent Current | 12 V: 35 mA 24 V: 21 mA 48 V: 15 mA |
12 V: 57 mA 24 V: 32 mA 48 V: 21 mA |
| Max. Output Current | 2.5 A per channel | 2 A per channel |
| Operating Temperature | 0 … 50 °C / 32 … 122 °F | 0 … 50 °C / 32 … 122 °F |
| Storage Temperature | -20 … 80 °C / -4 … 176 °F | -20 … 80 °C / -4 … 176 °F |
| Operating Humidity | 0 … 80% non-condensing | 0 … 80% non-condensing |
| Protection Class | IP20 | IP20 |
| Housing | Aluminum | Aluminum, Plastic |
| Certification | CE, ETL, UKCA | CE, ETL, UKCA |
| Input | DMX512 (RJ45) | DMX512 (RJ45 or screw terminals) |
| Output | DMX512 (RJ45) for chaining multiple device 3 x output channels (screw terminals) + connector: on input voltage – connector” low side PWM switch |
DMX512 (RJ45) for chaining multiple device 9 x output channels (screw terminals) + connector: identical to input voltage – connector: low side PWM switch |
*Always select the power supply output voltage accordingly to your LED fixture input voltage!
