4 Channel
IC: AM466330055
Certifications & Approbations
| Dimensions (W x H x D) | 49.8 x 43 x 15.1 mm / 1.96 x 1.69 x 0.59 in |
| Weight | 40 g / 0.09 lb |
| Mounting | back box installation, installation in protection class II devices |
| Max. casing temperature Tc | 75 °C |
| Expected life time @Tc | 50,000 H |
| Protection class | II in Intended Use |
| Protection degree housing & terminals | IP20 |
| Certificates | CE, DALI-2, UKCA, RoHS, FCC |
| Output Type | DALI-2, Multimaster |
| Voltage Range | 9.5 … 22.5 V DC (according IEC62368-101) |
| Typ. current consumption DALI (at 16.5 V) | 2.7 mA |
| Max. current consumption DALI (Inrush current at 22.5 V) | 10 mA |
| DALI addresses | None |
| DALI-2 addresses | 1 |
| Input for | Potential free button/switch |
| Number of inputs | 4 |
| Max wire length | 200 m |
| Connection type | Spring terminal connectors |
| Storing temperature | -20 … +50 °C / -4 … 122 °F |
| Working ambient temperature | -20 … +50 °C / -4 … 122 °F |
| Relative humidity | 8 … 80 % |
The tool to realize simple to highly sophisticated architectural lighting control projects – one software fits all!

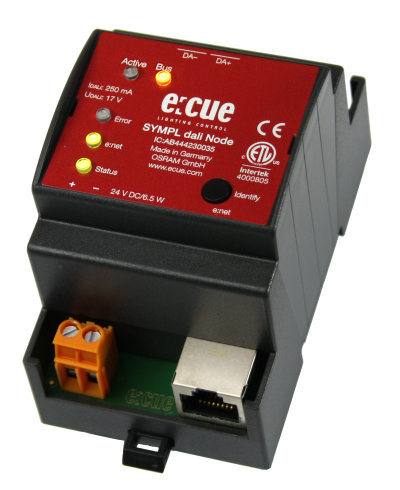

A single DALI line interface which can be used with e:cue’s lighting control software SYMPHOLIGHT.
